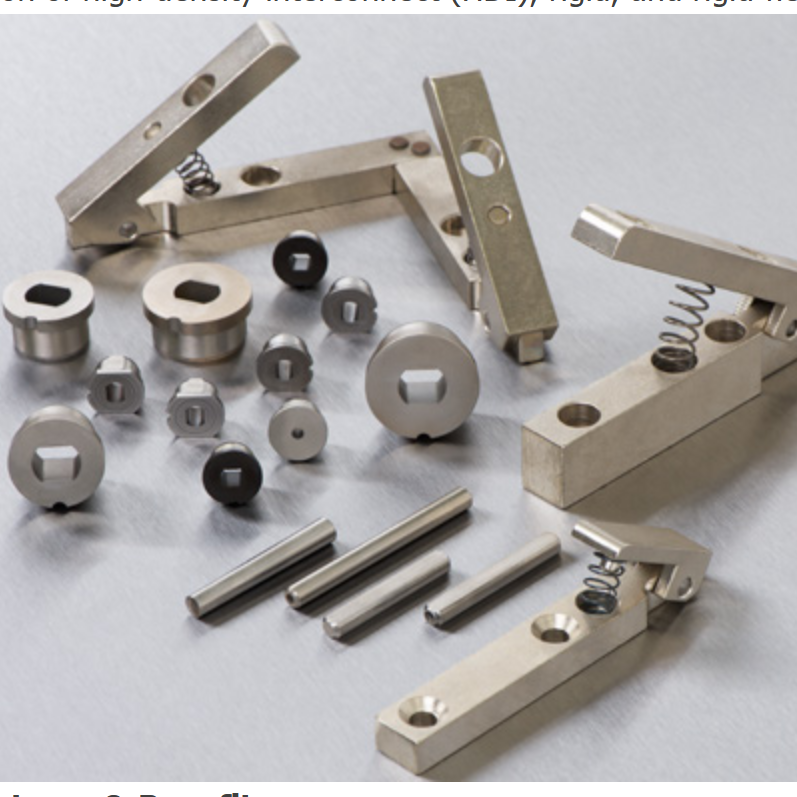

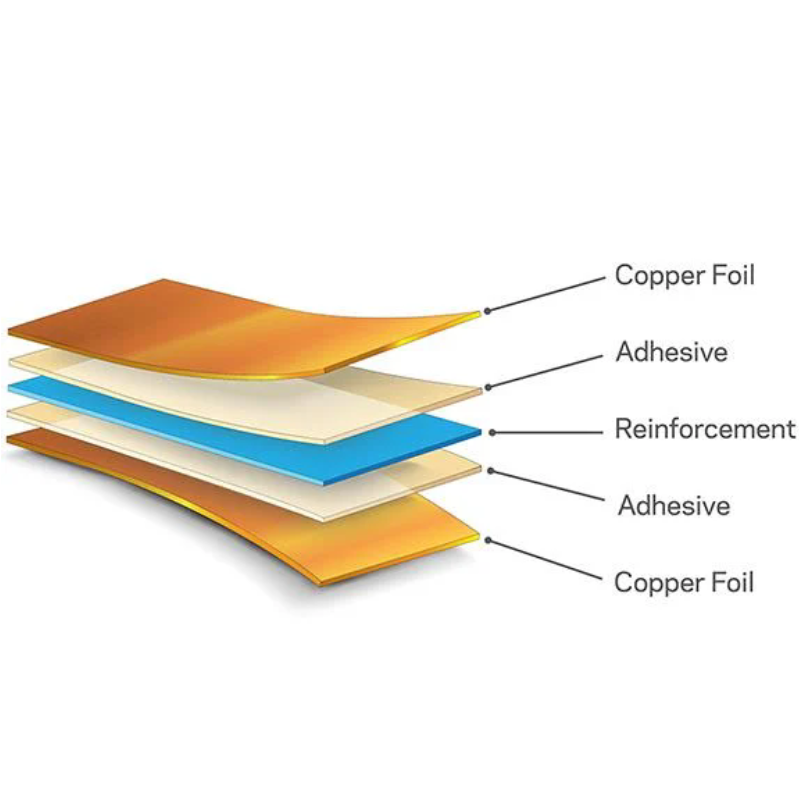

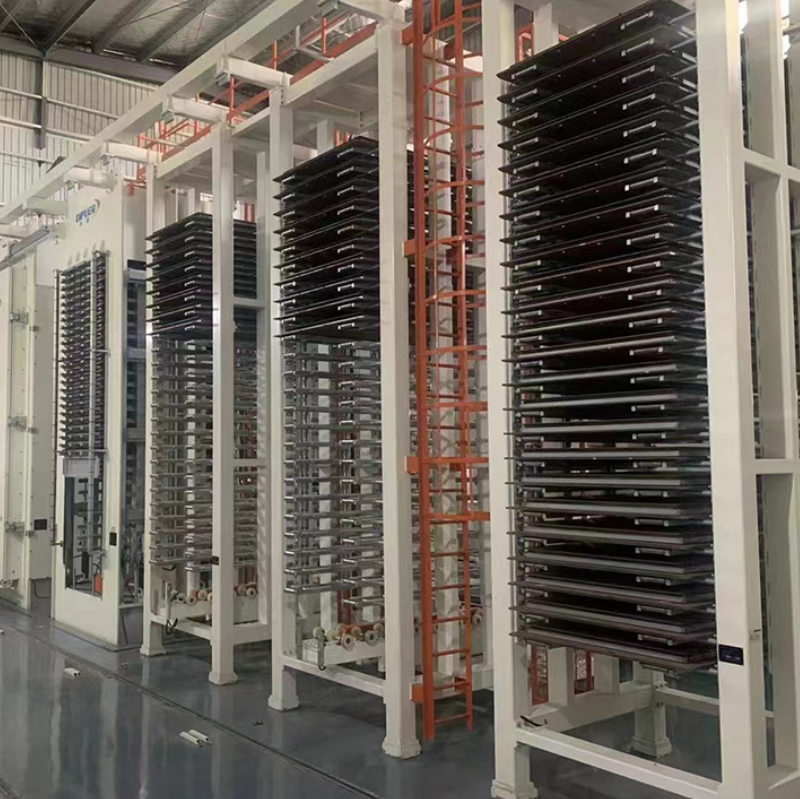

Ensure flawless layer-to-layer registration and eliminate misalignment in your multilayer PCB lamination process with our high-precision Tooling Pins and Bushings. Designed specifically for the rigorous demands of PCB lamination presses, this robust alignment system is engineered for carrier plates and press plates to guarantee perfect alignment of every layer, from inner cores to prepreg and copper foil.

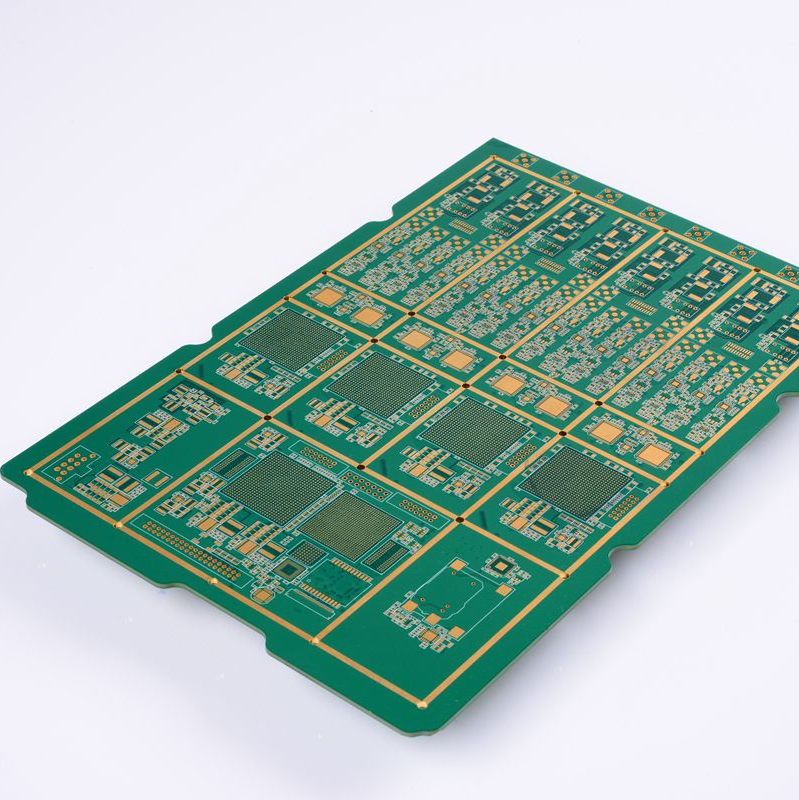

Crafted from high-grade, heat-treated tool steel with optional stainless steel versions, our pins and bushings withstand extreme temperatures, high pressure, and continuous cycling without warping or wearing. They are the critical foundation for achieving zero-defect lamination in the production of high-density interconnect (HDI), rigid, and rigid-flex PCBs.
